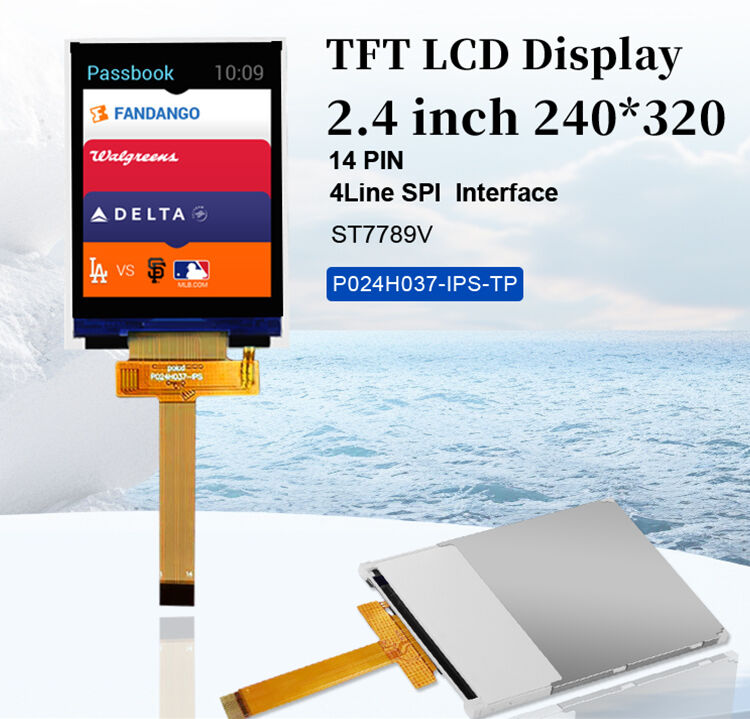

Name: Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024H037-IPS
Availability: InStock

Huis > producten > IPS de Vertoning van TFT LCD >

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P024H037-IPS

Contacteer ons

Verzoek om een Citaat

Productdetails

Oplossing:

2,4 duim 240x320

Interface:

4 -draads spi

Bestuurder Ic:

ST7789V

Helderheid (CD/m²):

neet 300

Kijkhoek:

IPS alle gezichtshoek

Weergavegebied:

36.72 (h) x48,96 (v) mm

Pin:

14 Pin

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

Polcd Factory 2.4" Screen TFT Display Qvga 240x320 Lcm Screen Panel 2.4 inch TFT Liquid Crystal Display

Krijg Beste Prijs

Video

Polcd 2.4" Small Lcd Display Module 240x320 Resolution SPI ST7789V IC TFT LCD Module for Home Appliances

Krijg Beste Prijs

Video

Polcd Full Color 2,8 inch Tft Display Kleine grootte RGB Kleuren scherm 2,8 " 240 * 320 Dot SPI TFT LCD Touch Panel

Krijg Beste Prijs

Video

Polcd 73,44 mm IPS TFT LCD-scherm 3,5 inch HDMI LCD 320X480 pixels

Krijg Beste Prijs

Contacteer ons

008613714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

Parameter:

Model	P024H037-IPS
Screen Size	2.4 inch
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pins	14 Pins
Outline Dimension	42.72x60.26x2.25mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	800:1
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display 0
