Name: Polcd Custom 3.5 inch Lcd Display Panel RGB interface 320*480 IPS Touch Screen 3.5" Tft Lcd Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035m068-IPS
Availability: InStock

Huis > producten > TFT LCD-Vertoning >

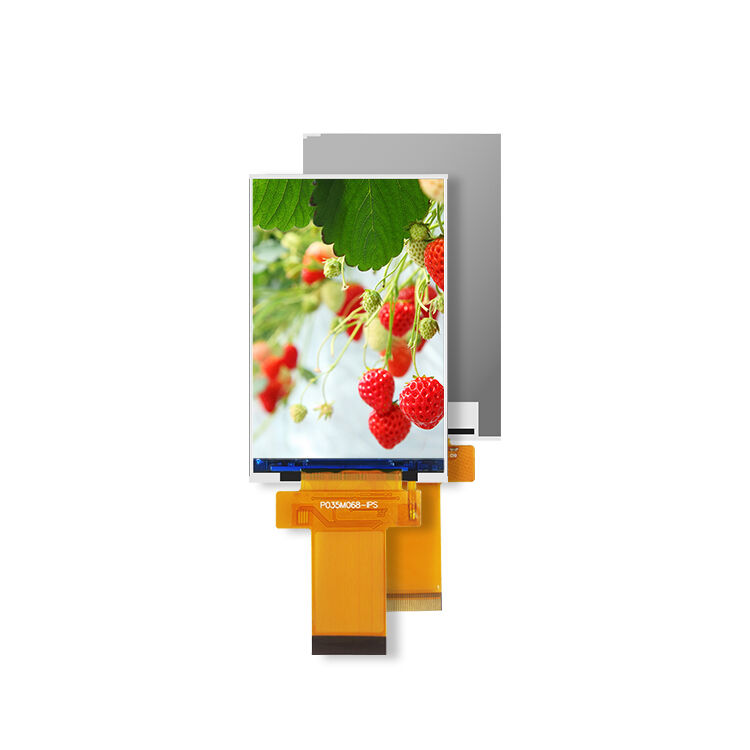

Polcd Custom 3.5 inch Lcd Display Panel RGB interface 320*480 IPS Touch Screen 3.5" Tft Lcd Module

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P035m068-IPS

Contacteer ons

Verzoek om een Citaat

Productdetails

Oplossing:

3,5 inch 320x480

Interface:

18BIT RGB

Helderheid (CD/m²):

neet 300

Het bekijken Richting (oog):

IPS

Bestuurder Ic:

ILI9488

Weergavegebied:

48.96 (H) x73.44 (V) mm

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

Polcd 3.5 Inch TFT LCD Display 320*480 IPS Full View LCD Display Screen Modules for Alarm Clock

Krijg Beste Prijs

Video

Polcd Custom 3.5 inch Lcd Display Panel RGB interface 320*480 IPS Touch Screen 3.5" Tft Lcd Module

Krijg Beste Prijs

Video

2.8 inch 178° Ips Tft Capacitive Touch Screen Full View Angle Spi Interface

Krijg Beste Prijs

Video

Polcd Factory 2 inch LCD-module 240x320 260cd/m2 Helderheid ST7789V schijf ic TFT-display

Krijg Beste Prijs

Contacteer ons

008613714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

3.5 inch TFT LCD is a type of display screen that uses thin-film transistor (TFT) technology to provide clear and vivid images. The term "TFT" refers to the type of transistor used to control the individual pixels on the screen, which allows for faster refresh rates and better color accuracy compared to other types of LCD screens.

The term "3.5 inch" refers to the diagonal size of the screen, which measures 3.5 inches from one corner to the opposite corner. This type of screen is commonly used in small electronic devices such as digital cameras, portable media players, and handheld gaming devices.

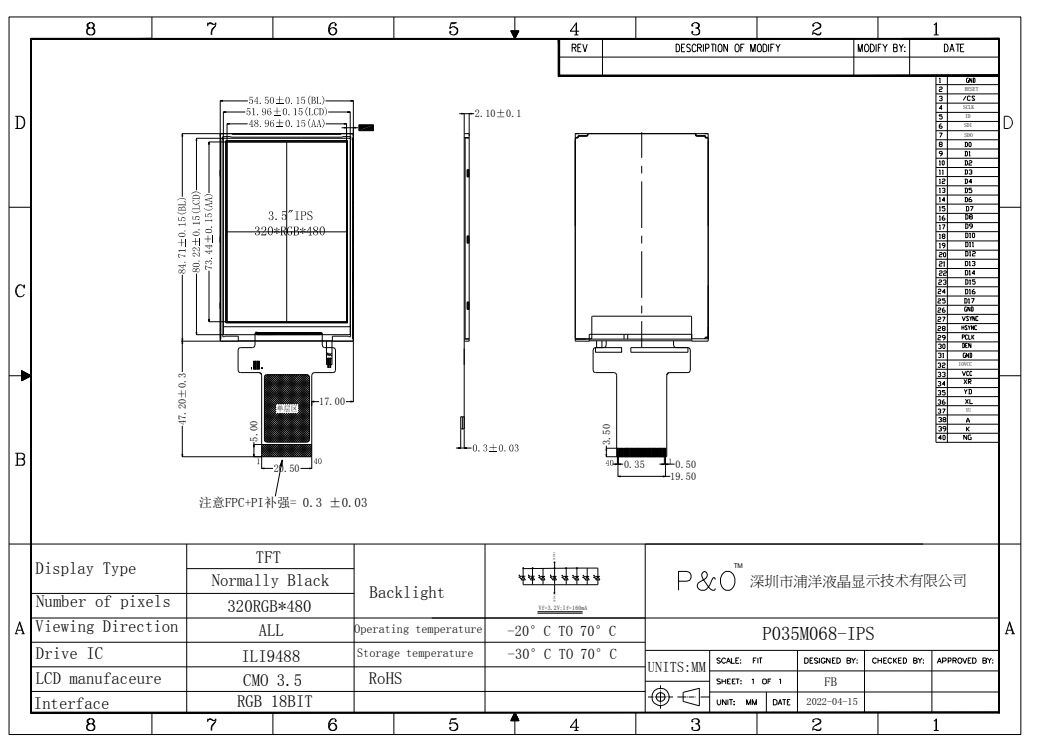

Technical Parameters:

Model No.	P035M068-IPS
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Pin	40 pin
Display area	48.96(H)x73.44(V)mm
Pixel pitch	51(H)x153(V)um
Outline Dimension	54.50x84.71x2.10mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	700:1
Interface	18BIT RGB
Back-light	LED Side-light type
Drive IC	ILI9488
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Polcd Custom 3.5 inch Lcd Display Panel RGB interface 320*480 IPS Touch Screen 3.5" Tft Lcd Module 0

Markeringen：

Polcd Custom 3.5 inch Lcd Display Panel RGB interface 320*480 IPS Touch Screen 3.5" Tft Lcd Module

Polcd 3.5 Inch TFT LCD Display 320*480 IPS Full View LCD Display Screen Modules for Alarm Clock

Polcd Custom 3.5 inch Lcd Display Panel RGB interface 320*480 IPS Touch Screen 3.5" Tft Lcd Module

2.8 inch 178° Ips Tft Capacitive Touch Screen Full View Angle Spi Interface

Polcd Factory 2 inch LCD-module 240x320 260cd/m2 Helderheid ST7789V schijf ic TFT-display

Technical Parameters:
