Name: Polcd 3.5 inch TFT LCD Screen 320*480 SPI interface High brightness 400nit 3.5 LCD Display Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035C074
Availability: InStock

Huis > producten > Kleine TFT-Vertoning >

Polcd 3.5 inch TFT LCD Screen 320*480 SPI interface High brightness 400nit 3.5 LCD Display Module

3.5 inch TFT LCD screen

320x480 SPI display module

high brightness 400nit LCD

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P035C074

Contacteer ons

Verzoek om een Citaat

Productdetails

Aantal pixel:

320xRGBx480

Schermgrootte:

3,5 inch

Weergavegebied:

48,96(H)x73,44(V)

Helderheid (CD/m²):

400

Interface:

4Line SPI

Bestuurder Ic:

ILI9488

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T,L/C,creditcard,PayPal,D/A,D/P,Western Union

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

Polcd 3,2 inch 240x320 pixel formaat Kleine TFT Display ILI9488 Driver ic Lcd

Krijg Beste Prijs

Video

Polcd Klein 2,8 inch 240x320 QVGA Hoge Helderheid 300nits MCU RGB interface IPS TFT-scherm

Krijg Beste Prijs

Video

Polcd 2,8 inch TFT Display 240x320 Pixel IPS Screen Panel 37 Pin MCU ST7789V TFT LCD-module

Krijg Beste Prijs

Video

Polcd OEM 2.8" tft lcd 240x320 262K Kleuren ST7789V driver IC MCU 18-bit interface Aangepast LCD Scherm

Krijg Beste Prijs

Contacteer ons

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

TFT Display Description:

This is a 3.5-inch TFT LCD display with a 4-line SPI interface and a 12 o'clock viewing angle. It provides high-quality display performance and is easy to integrate into various electronic devices. With a compact design and low power consumption, it is a reliable solution for applications that require a small display with clear images.

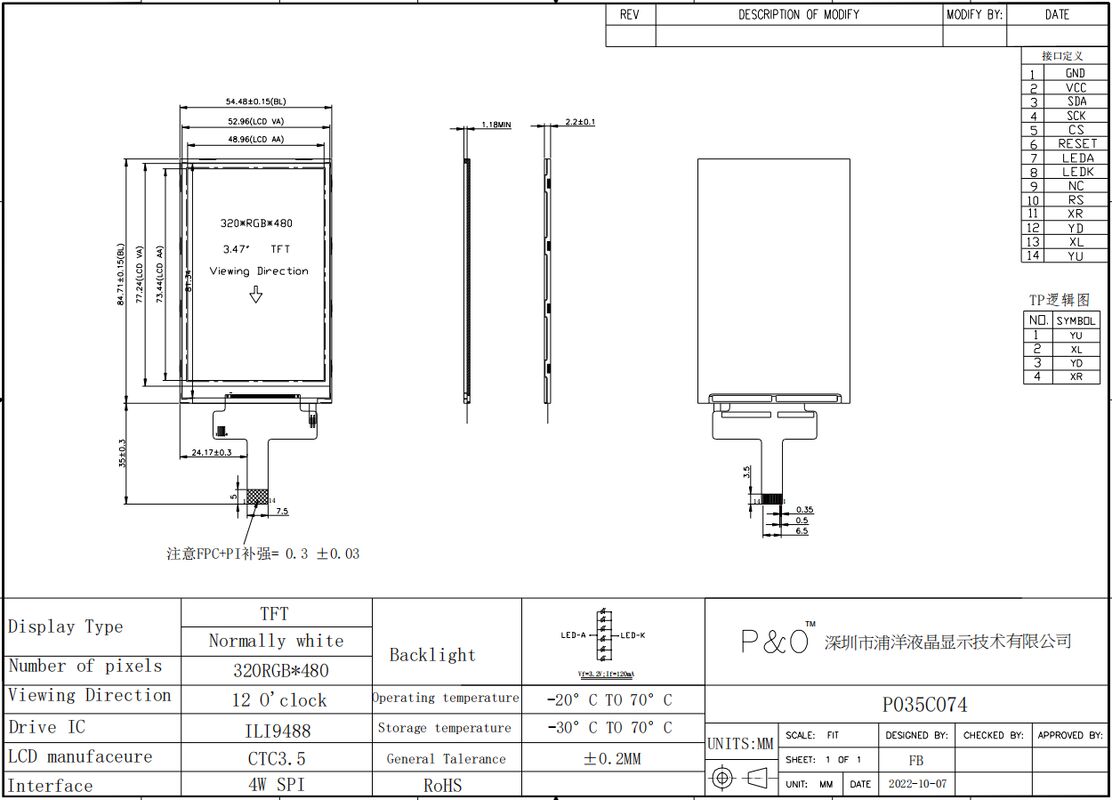

Parameter:

Model No.	P035C074
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Pin	14 pin
Display area	48.96(H)x73.44(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Outline Dimension	54.48x84.71x2.20
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262K
Luminance(cd/m²)	400 nit
Contrast Ratio	500:1
Interface	4Line SPI
Back-light	LED Side-light type
Drive IC	ILI9488
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

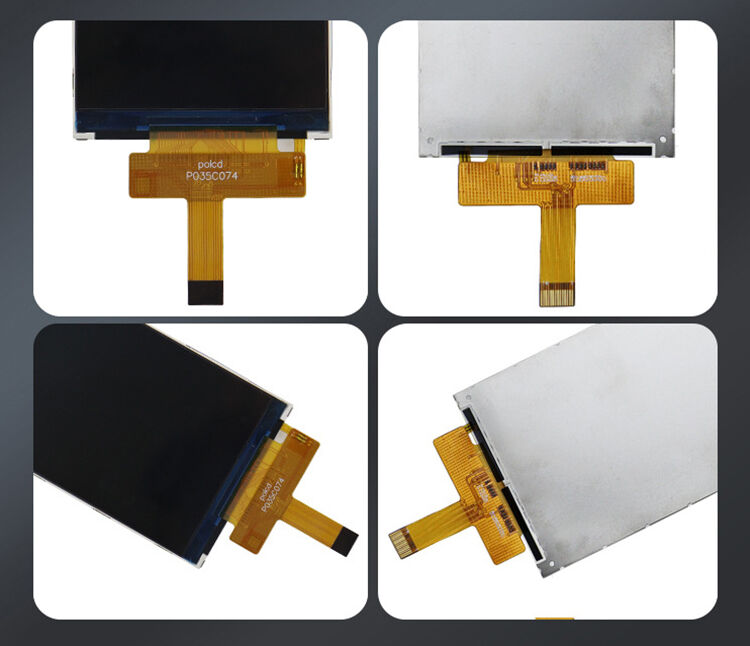

Polcd 3.5 inch TFT LCD Screen 320*480 SPI interface High brightness 400nit 3.5 LCD Display Module 0

Polcd 3.5 inch TFT LCD Screen 320*480 SPI interface High brightness 400nit 3.5 LCD Display Module 1
