Name: Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P070C012-CTP
Availability: InStock

Huis > producten > tft lcd module >

Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display

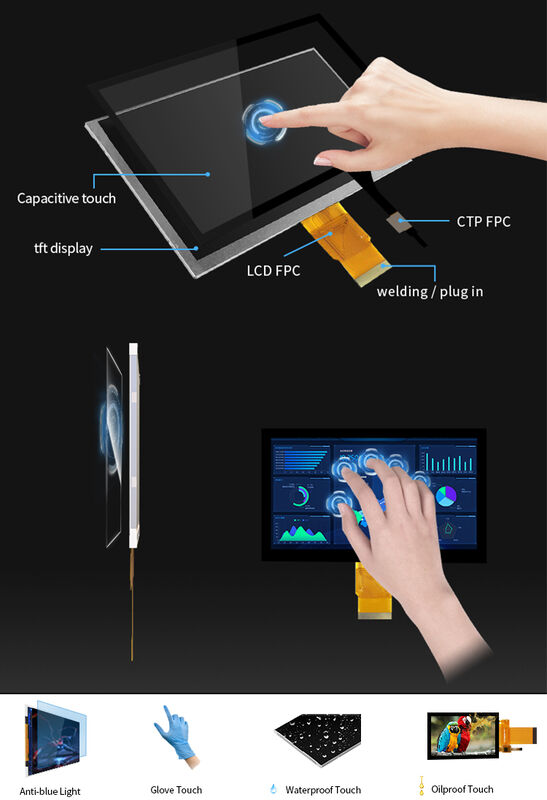

7 inch capacitive PCAP touch panel

800x480 resolution TFT LCD display

RGB interface TFT LCD module

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P070C012-CTP

Contacteer ons

Verzoek om een Citaat

Productdetails

Maat (inch):

7 inch 800x480

Helderheid (CD/m²):

neet 400

Interface:

RGB 24bit

Driver IC:

1*EK9716BD4 + 1*EK73002AB2

Het bekijken Richting (oog):

6 uur

Contrastverhouding:

500: 1

Weergavegebied:

153.84 ((H) x85.63 ((V) mm

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical

Krijg Beste Prijs

Video

Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen

Krijg Beste Prijs

Video

Polcd 4.0 inch 480x480 Square TFT Touch Screen RGB interface 4" LCD TFT Color Display Projector Module

Krijg Beste Prijs

Video

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

Krijg Beste Prijs

Contacteer ons

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

Description:

7.0-inch TFT LCD is a high-quality display screen commonly used in portable electronic devices such as smartphones, tablets, and handheld gaming devices. It offers a clear and sharp visual display with vibrant colors, making it an ideal choice for a wide range of applications.

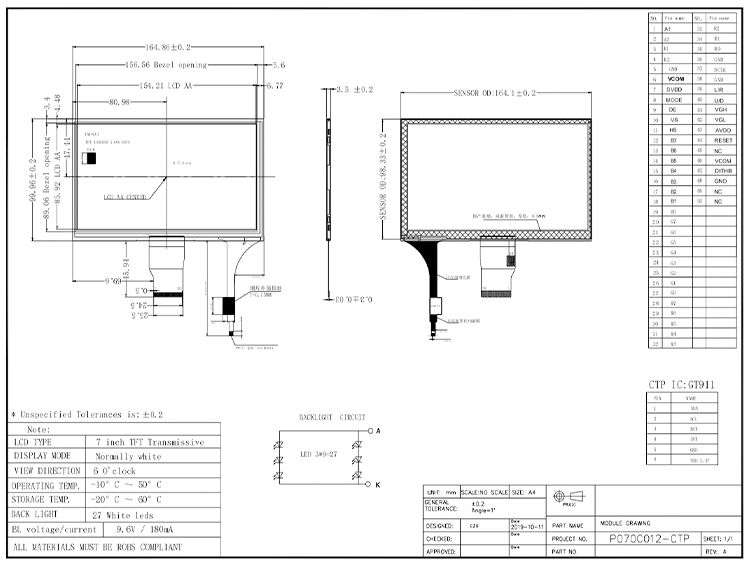

Model	P070C012-CTP
Screen Size	7 inch
Number of Pixel	800RGB(H)x480(V)
PIN	50 pin
Display area	154.21(H)x85.92(V)mm
Pixel pitch	0.0641(H)x0.1784(V)mm
Outline Dimension	164.86x99.96x6.00mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 o'clock
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	*1EK9716BD4 + 1EK73002AB2*
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃
