Name: Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P070C012-CTP
Availability: InStock

Huis > producten > tft lcd module >

Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical

7 inch TFT LCD display

800x480 resolution RGB screen

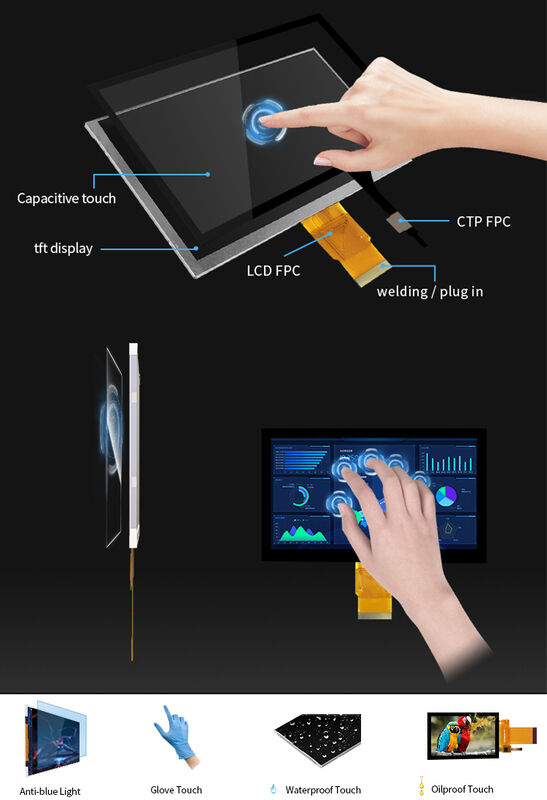

capacitive touch TFT module

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P070C012-CTP

Contacteer ons

Verzoek om een Citaat

Productdetails

Maat (inch):

7 inch 800x480

Helderheid (CD/m²):

neet 400

Interface:

RGB 24bit

Driver IC:

1*EK9716BD4 + 1*EK73002AB2

Het bekijken Richting (oog):

6 uur

Contrastverhouding:

500: 1

Weergavegebied:

153.84 ((H) x85.63 ((V) mm

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

Model	P070C012-CTP
Screen Size	7 inch
Number of Pixel	800RGB(H)x480(V)
PIN	50 pin
Display area	154.21(H)x85.92(V)mm
Pixel pitch	0.0641(H)x0.1784(V)mm
Outline Dimension	164.86x99.96x6.00mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 o'clock
Display Color	262k

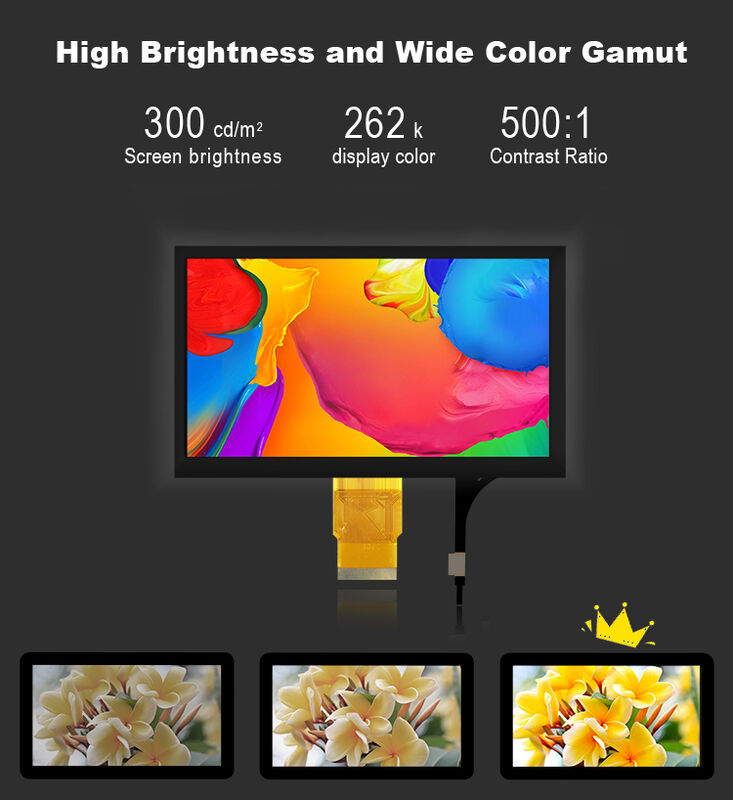

Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	*1EK9716BD4 + 1EK73002AB2*
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical 0
