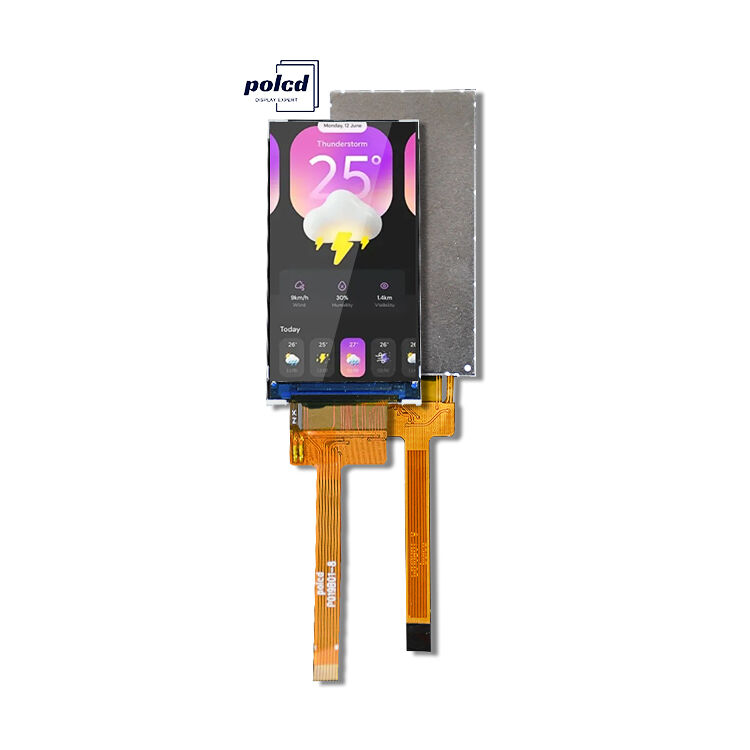

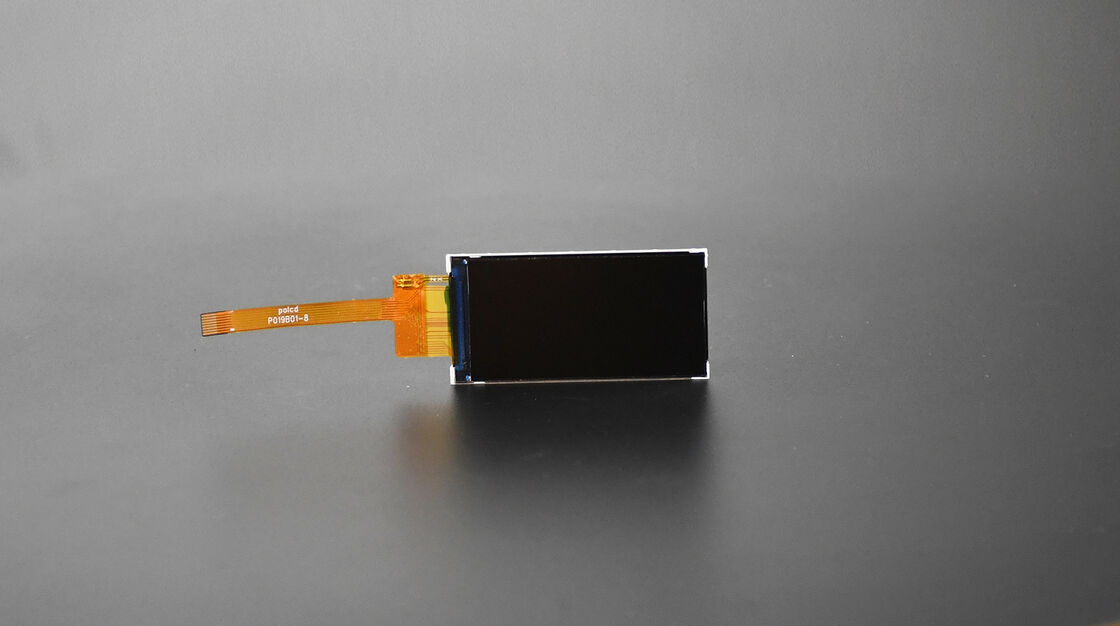

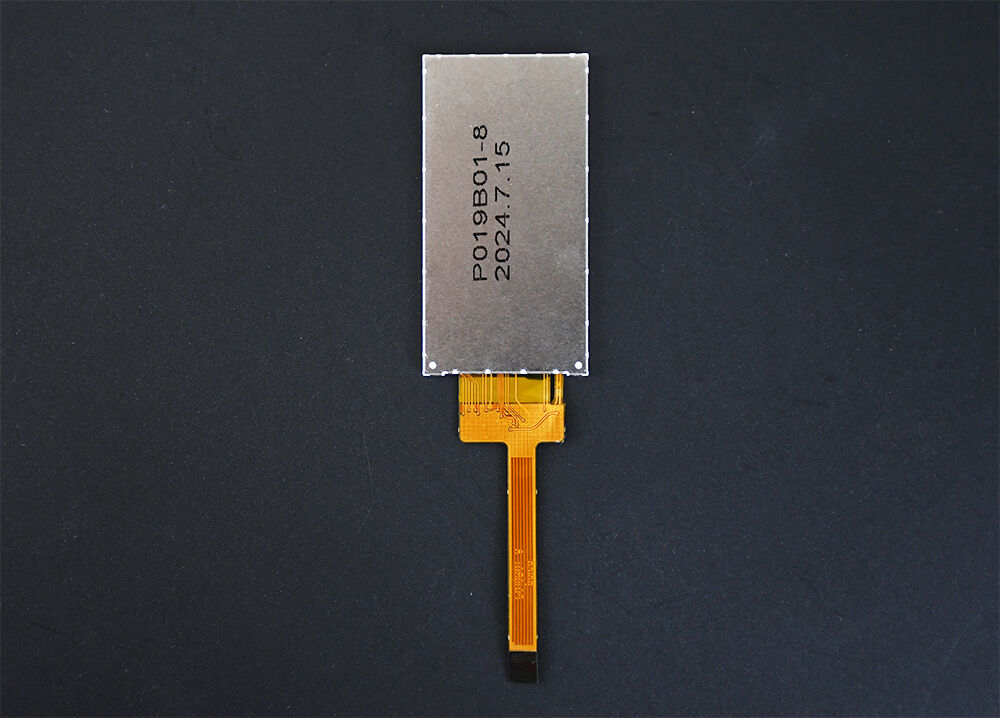

Name: Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P019B01-8
Availability: InStock

Huis > producten > tft lcd module >

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

1.9 inch IPS TFT LCD display

ST7789P3-G6 TFT LCD module

330nits high brightness LCD screen

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P019B01-8

Contacteer ons

Verzoek om een Citaat

Productdetails

Schermgrootte:

1,9 duim

Oplossing:

170x320

Actief gebied:

22.7 ((H) x42.72 ((V) mm

Helderheid (CD/m²):

600 nit

Interface:

4 lijn spi

Driver IC:

St7789P3-G6

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1~7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

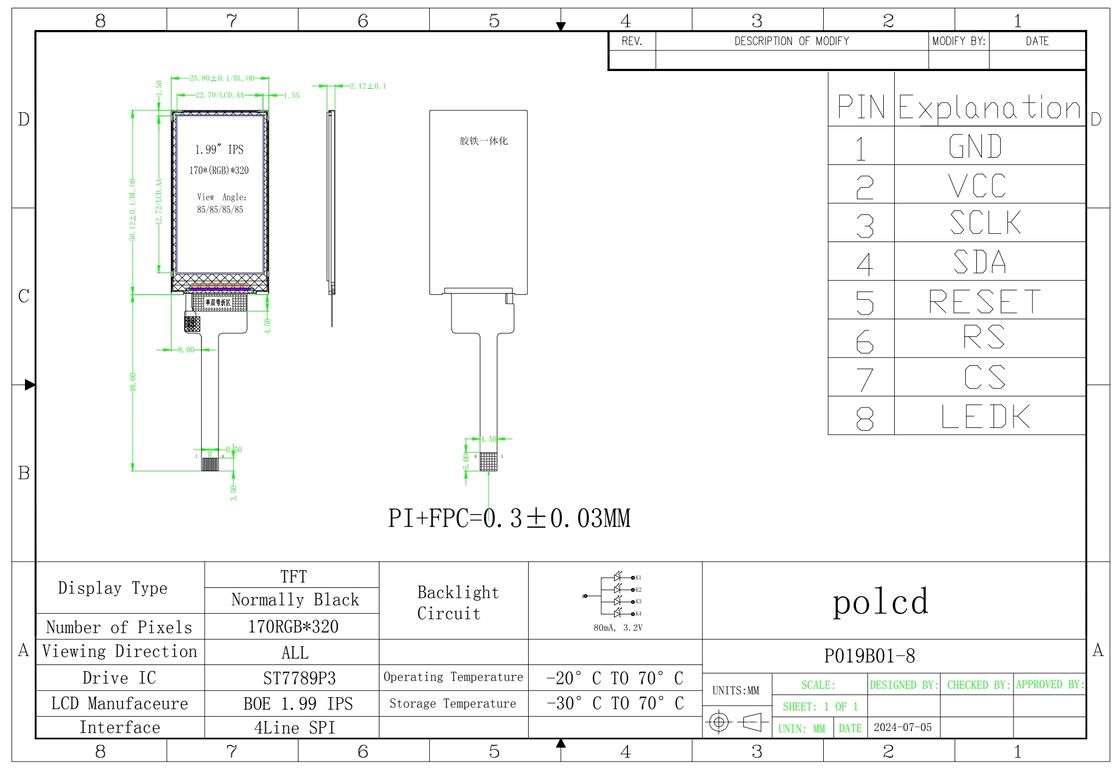

Parameter:

Model	P019B01-8
Screen Size	1.9 inch
Number of Pixel	170RGB(H)x320(V)
Display area	22.7(H)x42.72(V)mm
Pixel pitch	133.5(H)x133.5(V)um
Pins	8 pins
Outline Dimension	25.8x50.12x2.12±0.1mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	600 nit
Contrast Ratio	800:1
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789P3-G6
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display 0

Markeringen：

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

1.9 inch IPS TFT LCD display

ST7789P3-G6 TFT LCD module

330nits high brightness LCD screen
