Name: Polcd 2 inch 240*320 IPS Screen Transmissive ST7789V 300 nit 20 pin MCU interface TFT LCD Module Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P020H030-IPS
Availability: InStock

Huis > producten > tft lcd module >

Polcd 2 inch 240*320 IPS Screen Transmissive ST7789V 300 nit 20 pin MCU interface TFT LCD Module Display

2 inch IPS TFT LCD module

ST7789V transmissive display screen

20 pin MCU interface LCD

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P020H030-IPS

Contacteer ons

Verzoek om een Citaat

Productdetails

Oplossing:

240x320

Interface:

MCU met 8 bits

Driver IC:

ST7789V

Helderheid (CD/m²):

neet 300

Kijkhoek:

IPS Alle kijkhoeken

Weergavegebied:

30.60 ((H) x40.80 ((V) mm

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

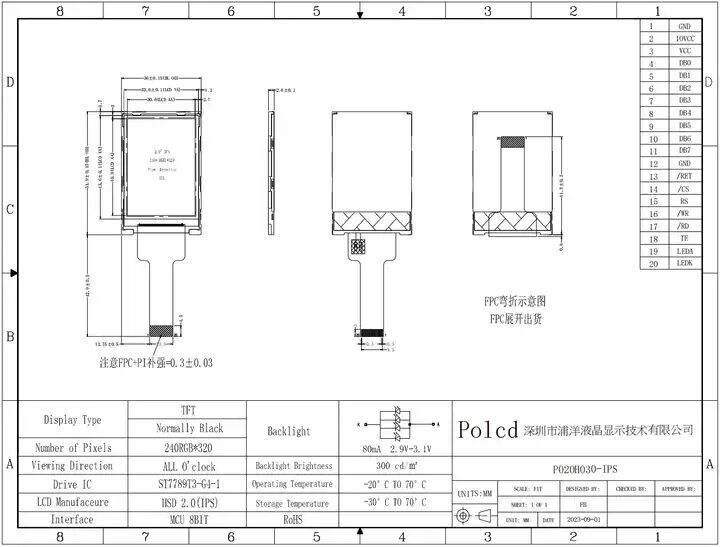

Parameter:

Model	P020H030-IPS
Screen Size	2.0 inch
Number of Pixel	240RGB(H)x320(V)
Display area	30.60(H)x40.80(V)mm
Pixel pitch	0.0425(H)x0.1275(V)mm
Outline Dimension	36.00x51.90x2.55mm
Pixel arrangement	RGB Vertical Stripe
Pins	20 Pins
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	800:1
Surface treatment	--
Interface	8 bit MCU
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Features

8Bit MCU interface.

Applications

1. MPOS Device.

2. Personal Navigation Device.

3. Other devices which require high quality displays.
