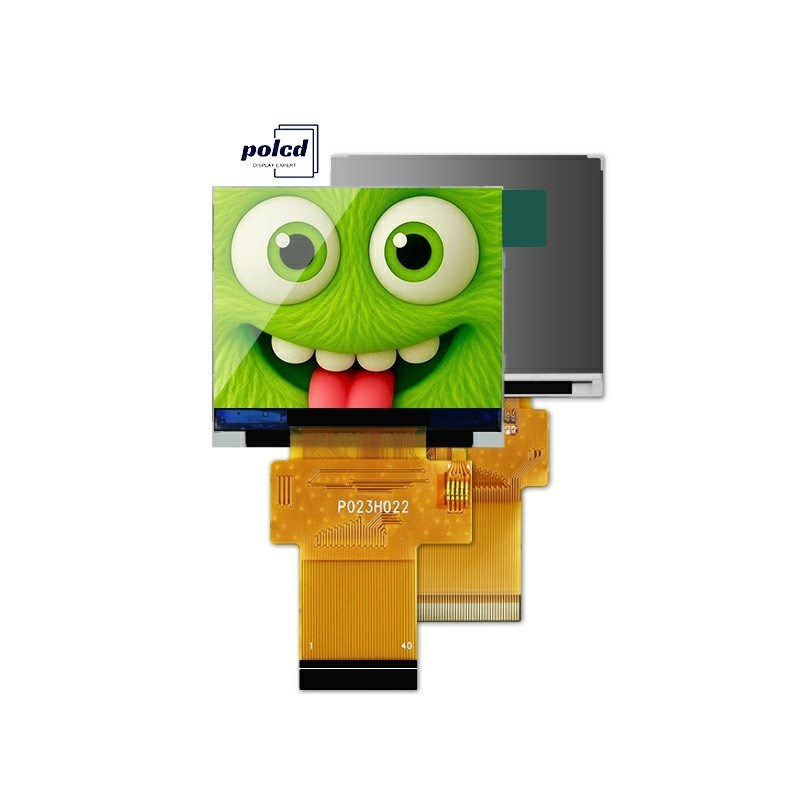

Name: Polcd 2.3 Inch 320*240 ILI9342C TFT LCD Module SPI Interface 40pin IPS Model TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P023H022
Availability: InStock

Huis > producten > Medische LCD Vertoning >

Polcd 2.3 Inch 320*240 ILI9342C TFT LCD Module SPI Interface 40pin IPS Model TFT LCD Display

2.3 inch IPS TFT LCD display

SPI interface TFT LCD module

medical LCD display with warranty

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P023H022

Contacteer ons

Verzoek om een Citaat

Productdetails

Maat (inch):

2.31

Oplossing:

320*240

Helderheid (CD/m²):

300

Interface:

RGB 18bit

Driver IC:

ILI9342C

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

Polcd Hoge helderheid 500nit 2,8 inch LCD scherm 240x320 RGB interface IPS CTP Capacitive Touch TFT Display

Krijg Beste Prijs

Polcd 2,4 inch Transmisief 240x320 helderheid 260 bestuurder ic ST7789V Interface 4 Lijn seriële TFT LCD

Krijg Beste Prijs

Video

Polcd 4.0'' Circle Panel LCD Module 720*720 ST7703 IPS View Angle MIPI interface Ronde TFT Display

Krijg Beste Prijs

Video

Polcd OEM ODM 2.8 Inch 240*320 IPS TFT LCD-schermmmodule met hoog zichtbaar scherm

Krijg Beste Prijs

Contacteer ons

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

Description:

2.31 inch TFT LCD (Thin-Film Transistor Liquid Crystal Display) refers to a small LCD display screen that measures 2.31 inches diagonally and uses thin-film transistor technology to control the liquid crystal display. It typically has a resolution of 240x320 pixels and the ability to display up to 262,144 colors. The screen may also include a capacitive touch panel for user input and interaction. This type of display technology is commonly used in various applications where a small, high-quality display with touch input is required, such as handheld devices, smartwatches, and medical devices.

Parameter:

Model	P023H022
Screen Size	2.31 inch
Number of Pixel	320RGB(H)x240(V)
Display area	46.75(H)x35.06(V)mm
Pixel pitch	0.1461(H)x0.1461(V)mm
Pins	40 pins
Outline Dimension	50.96x45.80x2.40mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 0'CLOCK
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	600:1
Interface	RGB 18BIT
Back-light	LED Side-light type
Drive IC	ILI9342C
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd 2.3 Inch 320*240 ILI9342C TFT LCD Module SPI Interface 40pin IPS Model TFT LCD Display 0
