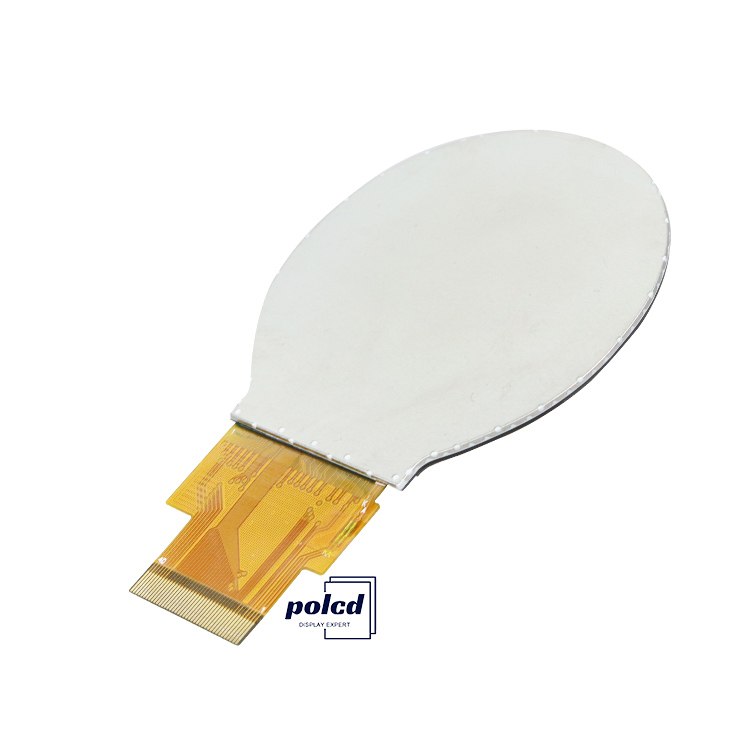

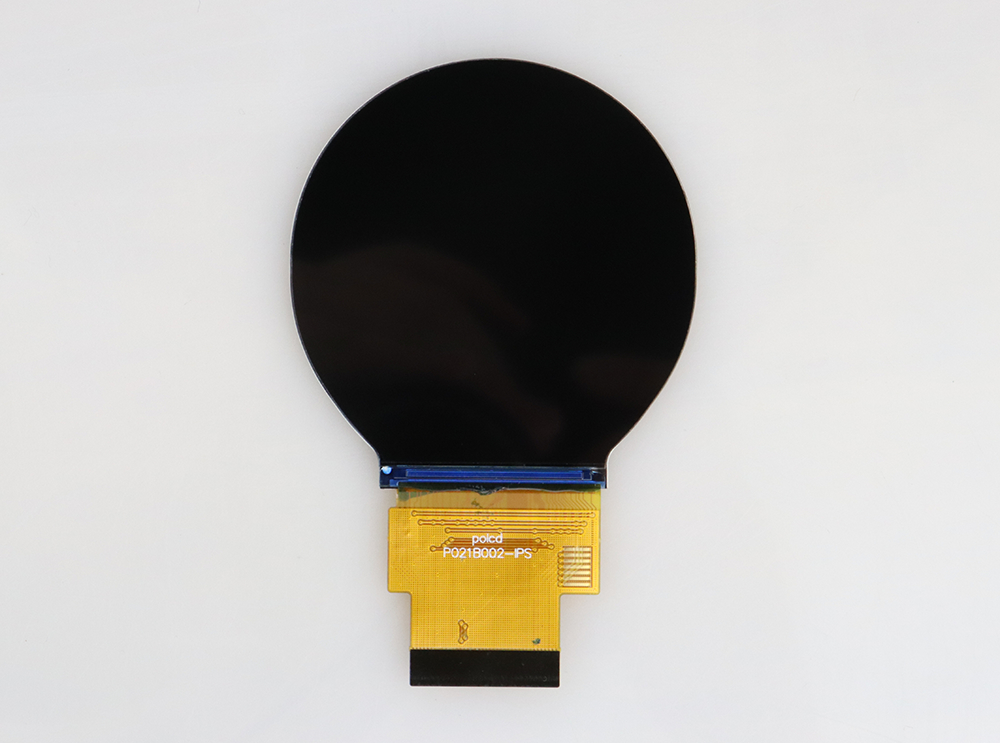

Name: Polcd 2.1 Inch 480x480 IPS Circular TFT Color Display LCD Module LCM Panel
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P021B002-IPS
Availability: InStock

Huis > producten > De Vertoningen van douanetft >

Polcd 2.1 Inch 480x480 IPS Circular TFT Color Display LCD Module LCM Panel

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P021B002-IPS

Contacteer ons

Verzoek om een Citaat

Productdetails

Oplossing:

2.1 inch 480x480

Interface:

3Line SPI 18bit RGB

Driver IC:

ST7701S

Helderheid (CD/m²):

neet 300

Kijkhoek:

IPS alle gezichtshoek

Weergavegebied:

53.28 ((H) x53.28 ((V) mm

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

Polcd Custom 2.1 Inch IPS TFT Round LCD Display Module with SPI RGB Interface

Krijg Beste Prijs

Video

Polcd 1,69 inch Touch Screen Lcd Display 240x280 SPI interface Kleine TFT-module

Krijg Beste Prijs

Video

Polcd 4 inch Ronde Circulaire TFT Display 720x720 MIPI-interface 30 Pins ST7703 TFT LCD-schermmodule

Krijg Beste Prijs

Video

Polcd 3,5' 3,5 inch SPI Interface 320x480 Resolutie ST7796U Driver IC IPS TFT LCD Display Module

Krijg Beste Prijs

Contacteer ons

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

Introduction:

The 2.1-inch circular LCD (Liquid Crystal Display) is an innovative and compact display module that offers a versatile solution for various electronic applications. With its small form factor and excellent visual performance, this circular LCD is becoming increasingly popular in today's technology-driven world.

Parameter:

Model	P021B002-IPS
Screen Size	2.1 inch
Number of Pixel	480RGB(H)x480(V)
Display area	53.28(H)x53.28(V)mm
Pixel pitch	111(H)x111(V)um
Pin	40 pins
Outline Dimension	56.18x59.71x2.2mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	1000:1
Interface	3Line SPI 18bit RGB
Back-light	LED Side-light type
Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Features:

1. Compact Design: Making it ideal for devices with limited space or those that require a small display area. Its circular shape adds a unique aesthetic appeal to the overall design.

2. High Resolution: Despite its small size, this LCD module delivers impressive image quality with high resolution. The display offers sharp and vibrant visuals, ensuring an enhanced user experience.

3. IPS Wide Viewing Angle: The circular LCD incorporates advanced viewing angle technology, enabling users to view the screen from various angles without compromising image clarity. This feature is particularly beneficial for devices that require multiple users to view the screen simultaneously.

4. Energy Efficiency: The designed to be energy-efficient, consuming minimal power while delivering optimal performance. This feature is crucial for portable devices and those with limited power resources, contributing to extended battery life.

Polcd 2.1 Inch 480x480 IPS Circular TFT Color Display LCD Module LCM Panel 0
