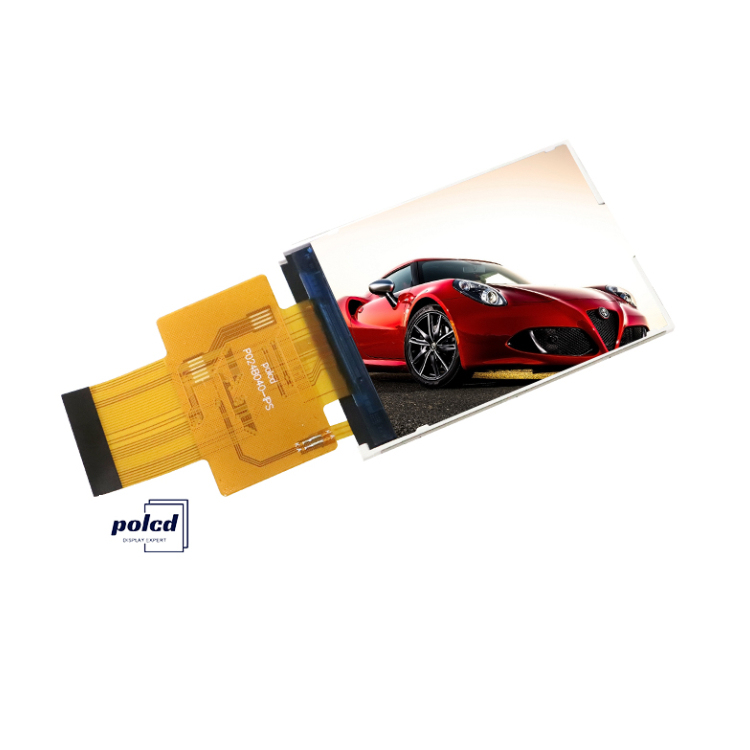

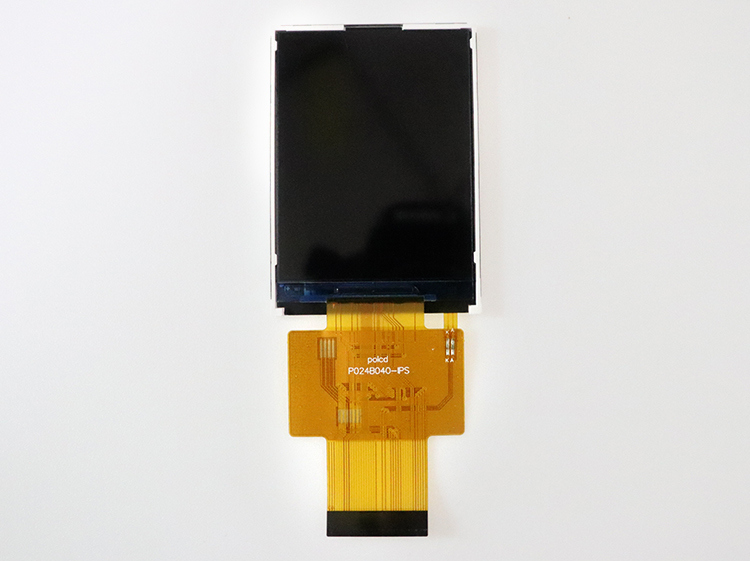

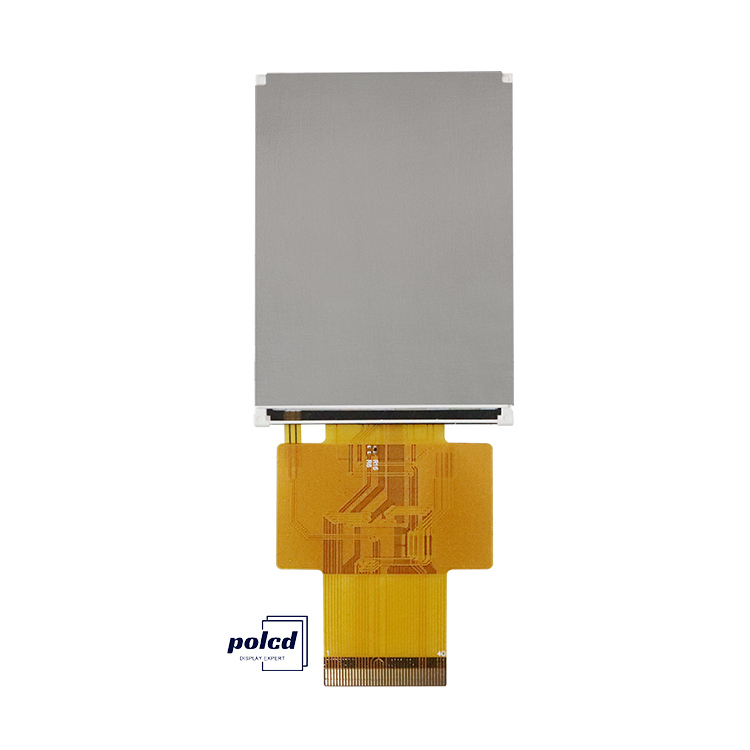

Name: Polcd Mini 2.4 Inch IPS TFT LCD Display Module 40 pin Small Size LCD Screen Panel 240x320
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024B040-IPS
Availability: InStock

Huis > producten > tft lcd module >

Polcd Mini 2.4 Inch IPS TFT LCD Display Module 40 pin Small Size LCD Screen Panel 240x320

Plaats van herkomst:

Shenzhen, China

Merknaam:

Polcd

Certificering:

RoHS, ISO9001

Modelnummer:

P024B040-IPS

Contacteer ons

Verzoek om een Citaat

Productdetails

Oplossing:

240x320

Interface:

MCU 8/16BIT

Driver IC:

ST7789V

Helderheid (CD/m²):

450 nit

Kijkhoek:

IPS Alle kijkhoeken

Weergavegebied:

36.72 ((H) x48.96 ((V) mm

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 stuk

Prijs

Please contact us for latest price

Verpakking Details

FCL-grootte: 40*30*20cm/Steekproef die verpakken: 20*18*13cm

Levertijd

1-7 werkdagen

Betalingscondities

T/T, L/C, creditcard, PayPal, D/A, D/P, Western Union, MoneyGram

Levering vermogen

40.000 pc's per dag

Verwante Producten

Video

Polcd 2.4 Inch 240x320 ST7789V Mcu Interface Full Viewing Angle IPS 2.4" Tft Lcd Module

Krijg Beste Prijs

Video

Polcd 2.4 Inch Touch Screen Module ST7789V IC 240x320 Resolution 2.4" TFT LCD Display

Krijg Beste Prijs

Video

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 Mcu Interface Tft Screen Module

Krijg Beste Prijs

Video

Polcd TFT 2,4 inch Spi-interface LCD 240*320 RGB Kleur touchscreen ST7789V 16pin 2,4 TFT-display

Krijg Beste Prijs

Contacteer ons

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact nu

Productomschrijving

Description of 2.4 inch TFT LCD :

2.4 inch TFT LCDs are commonly used in a variety of electronic devices, including handheld gaming devices, automotive displays, industrial controllers, medical devices, and smart home devices. They typically have low power consumption, wide viewing angles, and can be customized to meet specific application requirements, including touch screen support and different backlight options.

Parameter:

Item	Specification
Model	P024B040-IPS
Screen Size	2.4 inch
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pins	40 pins

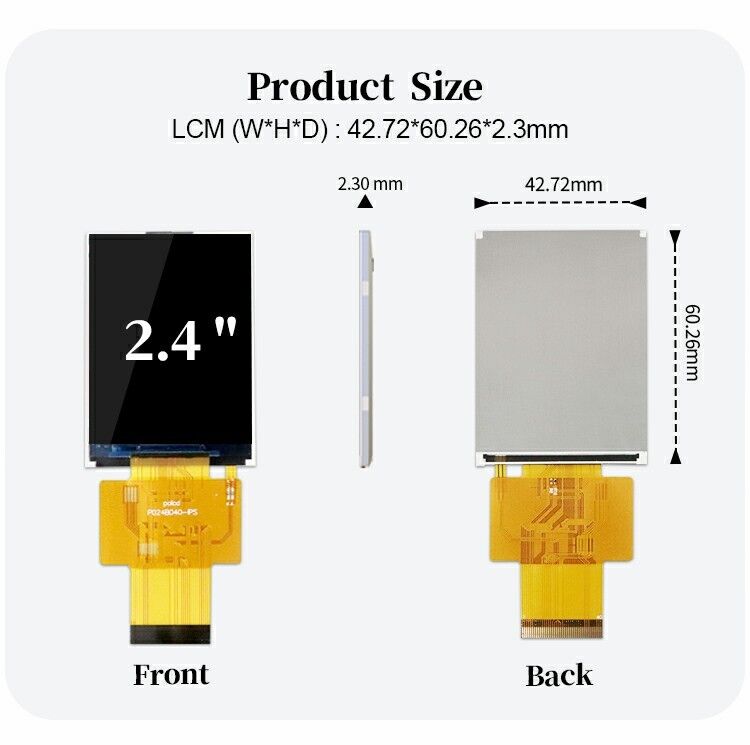

Outline Dimension	42.72x60.26x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black

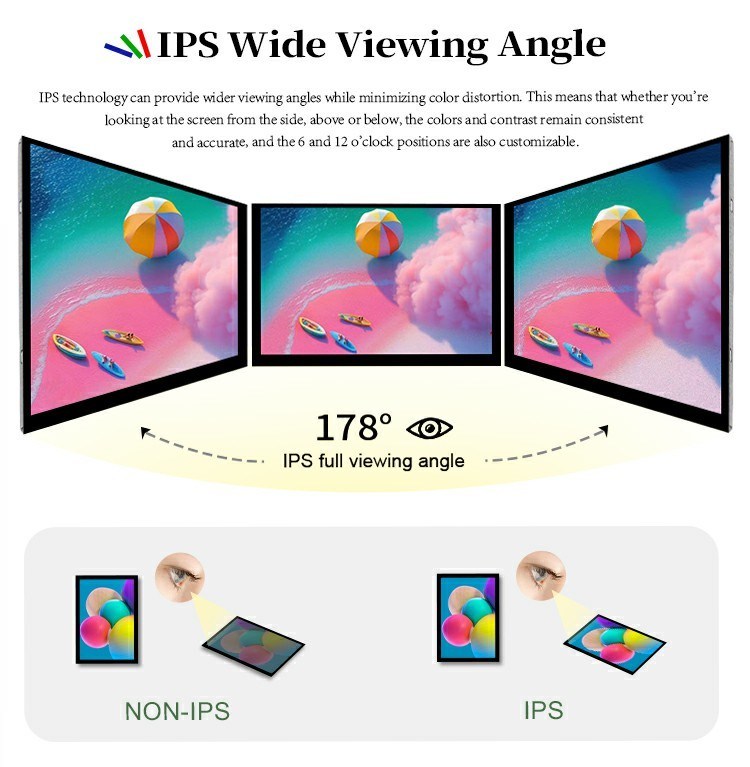

Viewing Direction(eye)	ALL
Gray inversion direction	--
Display Color	262K
Luminance(cd/m2)	450 nit
Contrast Ratio	1200:1
Surface treatment	--
Interface	MCU 8/16BIT
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd Mini 2.4 Inch IPS TFT LCD Display Module 40 pin Small Size LCD Screen Panel 240x320 0

Polcd Mini 2.4 Inch IPS TFT LCD Display Module 40 pin Small Size LCD Screen Panel 240x320 1
